PRODUCT LIST

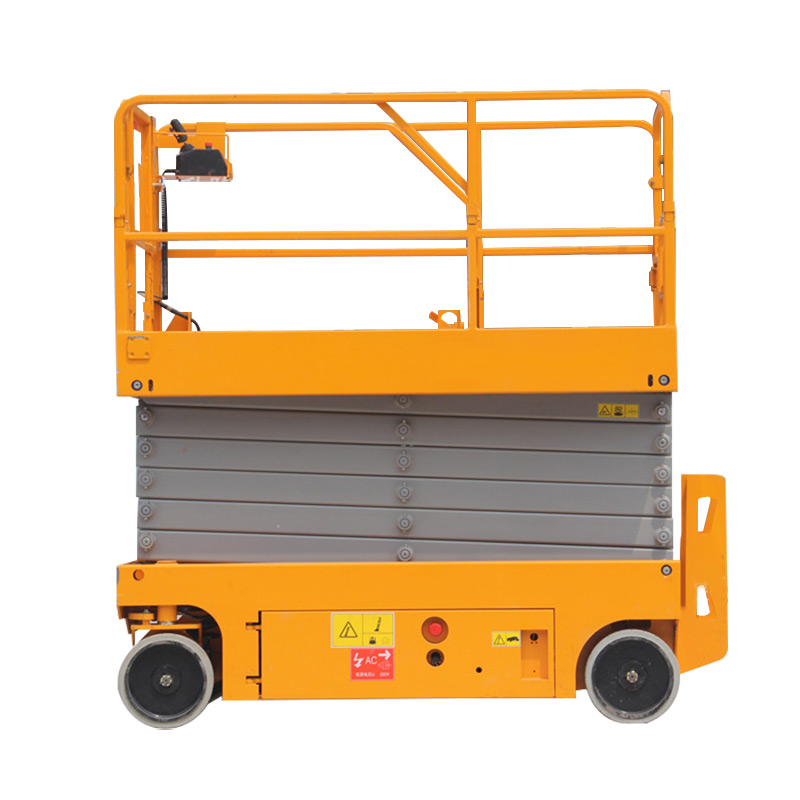

Type : fully automatic mobile lifting platform
Model : ADYD/ZXZ8-500
Working height max. : 8m
Platform height max. : 6m
Safe working load : 500kg
Extended platform safe working load : 113kg
Overall size (guard plate unfolded)) : 2475mm*1150mm*2150mm
Hydraulic lifting platform is widely used in various industrial fields and production lines such as automobiles, containers, mold manufacturing, wood processing, and chemical filling, tilting, telescopic), with various control methods (separate action, linkage, explosion-proof), with the characteristics of stable and accurate lifting, frequent starting, large load capacity, etc., effectively solves the difficulties of various lifting operations in industrial enterprises, and makes production operations easy freely. The scissor-type lifting platform structure makes the lifting of the platform more stable, and the wide working platform and large carrying capacity make the range of high-altitude work larger and suitable for multiple people to work at the same time. It makes aerial work more efficient and safer!
Product Features
1. Base:
High quality base can
make the whole machine more stable and won’t shake during the lifting
process
2. Control
system: up down operation controller simplicity operation centralized
maintenance, display fault code
3. Battery
system: foreign brand battery system and hydraulic system, quality
assurance
4. High
strength manganese steel
5. Anti-slip and wearing rubber wheel, long service life
Technical Parameter
| Type | fully automatic mobile lifting platform |
| Model | ADYD/ZXZ8-500 |
| Working height Max. | 8m |
| Platform height Max. | 6m |
| Safe working load capacity | 500kg |
| Extension platform safe working lode capacity | 113kg |
| Working platform size | 2200mm*1100mm*1130mm |
| Overall Dimension(guard plate unfolded) | 2475mm*1150mm*2150mm |
| Overall Dimension(guard plate folded) | 2475mm*1150mm*1711mm |
| extension deck size | 0.9m |
| Ground clearance-center | 0.1/0.02m |
| Wheel base | 1.89m |
| Turning radius (inner/outer wheel) | 0.15/2.3m |
| Lifting/Driving motor | 24V 4.5KW |
| Lifting speed | 3-5m/min |
| Machine speed(folded state) | 4km/h |
| Machine travel speed(lifting state) | 0.8km/h |
| Battery | 4*6V/225Ah |
| Charger | 24V 30A |
| Maximum climb capability | 25% |
| Working maximum allowable angle | 1.5 degree/3 degree |
| Tire | Dia381*127mm |
| Whole machine weight | about 2060kg |
· Professional manufacturer with many years' experience
· Good quality with competitive price
· Various payment items are acceptable
· Good service by experienced manager
