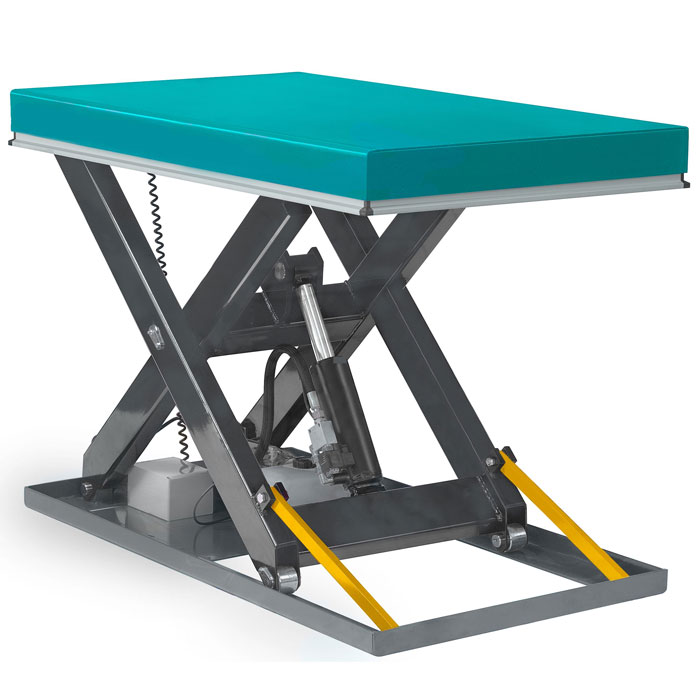

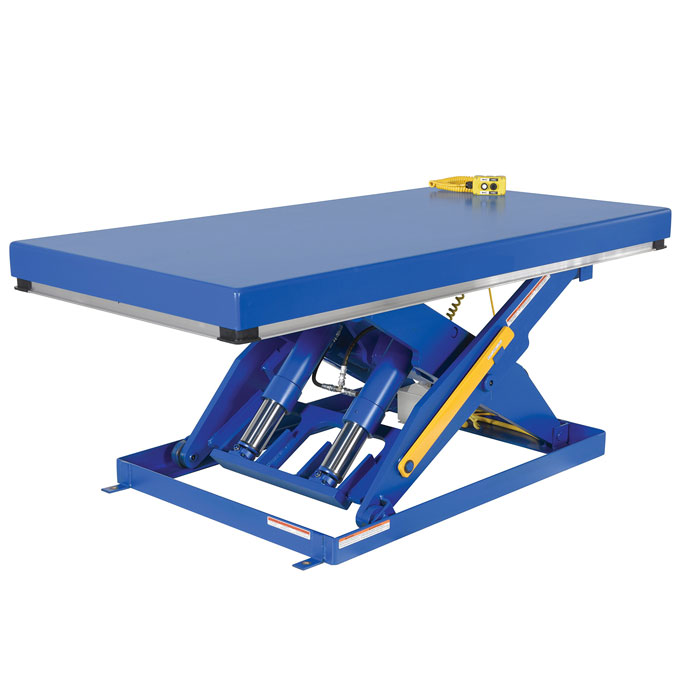

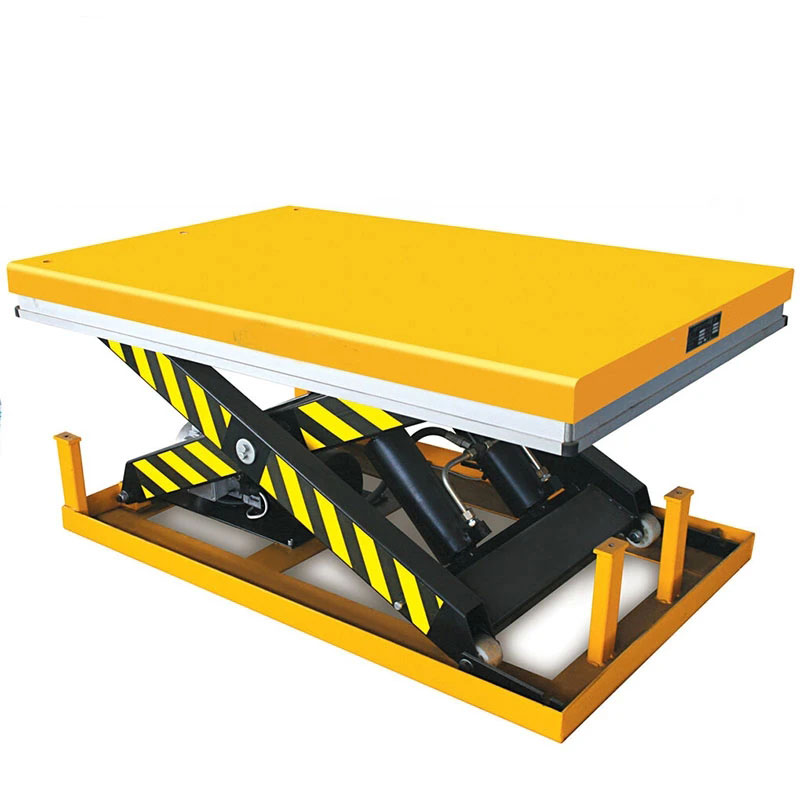

Hydraulic fixed scissor lift platform equipment

Product kinds : Fixed scissor lift platform equipment

Loading : 0.1-100tons

Table Size : 1200mmx1500mm or customized

Control : Control box on ground and control panel in top platform

Material : High Strength Manganese Steel rectangular tube

Color : Red, green, blue or as your requirements

Send Inquiry Now

Hydraulic fixed scissor lift platform equipment

Product Details

Product description

Fixed lifting platform with steel structure or steel plate structure of high strength. The size of product or equipment can be customized according to the needs of different users and operation mode can not only be divided into the upper and lower control and ground single control, but also point up point drop, multi layer control. In order to meet all kinds of special requirements and specially designed hydraulic lifting platform under special conditions can be aimed at the user to the lifting platform of various special needs, with the fastest time to provide the best solution.

Hydraulic Fixed Scissor Lift Platform, a versatile and reliable solution for your elevated work requirements. This state-of-the-art platform offers exceptional stability, safety, and efficiency, making it the ideal choice for a variety of applications, including construction, maintenance, and warehousing.

The Hydraulic Fixed Scissor Lift Platform is designed with a robust, yet lightweight structure, ensuring durability and easy maneuverability. Its compact size allows for seamless navigation in tight spaces, while its impressive load capacity of up to 1,000 kg makes it suitable for handling heavy loads with ease. With a maximum working height of 12 meters, this platform provides ample access to hard-to-reach areas, enabling you to complete tasks efficiently and safely.

Product advantages

Safety is a top priority in the design of the Hydraulic Fixed Scissor Lift Platform. Equipped with non-slip platforms and guardrails, this unit ensures a secure working environment for operators. Additionally, its advanced hydraulic system with overload protection prevents accidents caused by overloading, while the emergency stop button allows for immediate cessation of operation when necessary.

The platform's user-friendly controls make it easy for operators to navigate and control the lift with minimal training. The control panel features simple, intuitive controls, allowing for smooth and precise movements. The platform can be operated by a single person, reducing the need for additional manpower and increasing overall productivity.

It owns stable structure and the failure rate is low. Also the maintenance is simple and convenient.

Technical parameters

Model	Platform(mm)	Net elevation(m)	Loda(kg)	Self weight(kg)	Dimensions(mm)
ADYD/FZ0.5-4	2010*930	4	500	850	201611001100
ADYD/FZ0.5-6	2010*930	6	500	950	201611001295
ADYD/FZ0.5-7	2010*930	6.8	500	950	201611001415
ADYD/FZ0.5-8	2010*930	8	500	1070	201611001535
ADYD/FZ0.5-9	2010*930	9	500	1170	201611001540
ADYD/FZ0.5-10	2010*1130	10	500	1360	201612901540
ADYD/FZ0.5-11	2010*1130	11	300	1480	201612901660
ADYD/FZ0.5-12	2462*1210	12	500	1950	246513601780
ADYD/FZ0.5-14	2845*1420	14	500	2580	284516201895
ADYD/FZ0.3-16	2845*1420	16	300	2780	284516202055
ADYD/FZ0.3-18	3700*1628	18	300	3900	370016281950

Scope of application

Mainly used in the production line and warehouse, paper pharmaceutical and other industries, which can be used as a delivery lift, transport goods, stable and reliable, safe and reliable, economical and practical.

In conclusion, the Hydraulic Fixed Scissor Lift Platform is a versatile, safe, and efficient solution for a wide range of applications. With its robust design, user-friendly controls, and customization features, this platform is sure to revolutionize the way you approach elevated work tasks. Invest in the Hydraulic Fixed Scissor Lift Platform today and experience the future of elevated work solutions.
